Diameter 45mm PMMA 60 Degree Led Lens For Downlight 93% Efficiency

Name: Diameter 45mm PMMA 60 Degree Led Lens For Downlight 93% Efficiency
Brand: Shenzhen wisertop optics Co., Ltd
SKU: WT-45@22-60COBL9-C1
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Wisertop

Certification: Rohs

Model Number: WT-45@22-60COBL9-C1

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Shenzhen Wisertop Technology Co.,Ltd

Packaging Details: Master carton

Delivery Time: 1-2 weeks

Supply Ability: 100,000 day

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                PMMA 60 Degree Led Lens, 45mm pmma led lens, Downlight 60 Degree Led Lens


Light Source:	Brand COB Leds As Cree Bridgelux Lumileds Osram...	Material:	PMMA
Working Temperature:	-40°C~+70°C	Certificates:	Rohs
Lens Type:	TIR Les	Efficiency:	93%

Light Source:	Brand COB Leds As Cree Bridgelux Lumileds Osram...
Material:	PMMA
Working Temperature:	-40°C~+70°C
Certificates:	Rohs
Lens Type:	TIR Les
Efficiency:	93%

Product Description

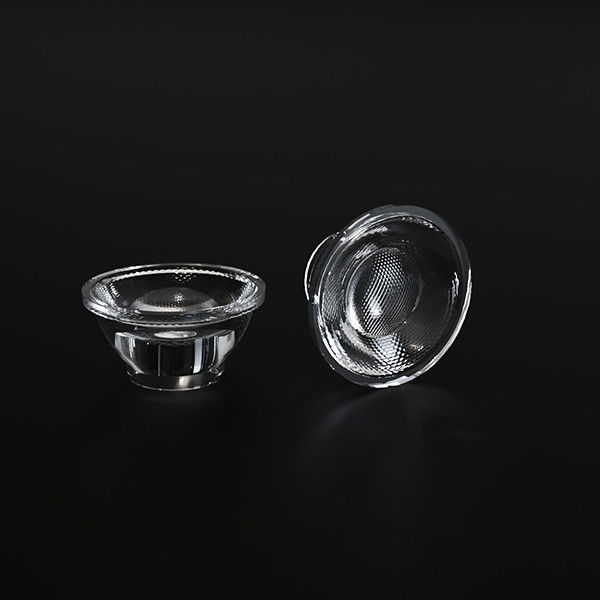

COB Lens diameter 45mm PMMA material viewing angle 60 degree for downlight

Application: Spot light, Down light, Tracking light, Recessed lamp, Ceilling light

Lens material: PMMA all available

Lens features:

● Low glare.

● Strong visual impact; the obvious cut-off line clearly cut off lightng area and the non-lighing area.

● Perform excellently on color mixing

● Super bright and highly uniform anti-glare light.

Fit COB light source: Cree, Lumileds, Bridgelux, Citizen.....

Specifications
Part no	Light-emitting surface	FWHM	Size (mm)	Typ.eff	Material
WT-45@22-15COBL9-C1	¢6mm COB	15°	φ44.8×22.5	0.93	PMMA
WT-45@22-24DCOBL9-C1	¢9mm COB	24°		0.93	PMMA
WT-45@22-36COBL9-C1	¢9mm COB	36°		0.93	PMMA
WT-45@22-60COBL9-C1	¢9mm COB	50°		0.93	PMMA

Diameter 45mm PMMA 60 Degree Led Lens For Downlight 93% Efficiency 0

Diameter 45mm PMMA 60 Degree Led Lens For Downlight 93% Efficiency 1

FAQ
1) Can l have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) When can l get the quotation?
A: We usually give you an offer within 12 hours after we getyour inquiry,. But if you want to get the offer ASAP,please call us or emal us that we can
3) What is the lead time?
A:Sample needs about 3-5 days prepared, mass production time needs 1-2 weeks normally.
4) What are your main products?
A: Our main products are indoor lenses.
