Plastic LED Lighting Lens Match Bridgelux COB Lenses For Downlight

Name: Plastic LED Lighting Lens Match Bridgelux COB Lenses For Downlight
Brand: Shenzhen wisertop optics Co., Ltd
SKU: WT-35@11-AVG24-L6
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Wisertop

Certification: Rohs

Model Number: WT-35@11-AVG24-L6

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Shenzhen Wisertop Technology Co.,Ltd

Packaging Details: Master carton

Delivery Time: 1-2 weeks

Supply Ability: 100,000 day

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Plastic LED Lighting Lens, Bridgelux COB Lenses, Plastic COB Lenses


Light Source:	Bridgelux	Material:	PC
Working Temperature:	-40°C~+90°C	Certificates:	Rohs
Lens Type:	TIR Les	Efficiency:	88%

Light Source:	Bridgelux
Material:	PC
Working Temperature:	-40°C~+90°C
Certificates:	Rohs
Lens Type:	TIR Les
Efficiency:	88%

Product Description

PC material beam angle 24° match Bridgelux COB Lens for downlight diameter 35mm Lens

Application: Spot light, Down light, Tracking light, Recessed lamp, Ceilling light

Lens material: PC material

Features:

● Low glare

● Natural light cutting, merging into nature

● Wide viewing angle distribution, full and uniform

● Clean, integrated and uniformly distributed deep anti-glare light distribution type

Fit COB light source: Cree, Luminus, Bridgelux, Citizen.....

Specifications
Part no	Light-emitting surface	FWHM	Size (mm)	Typ.eff	Material
WT-35@11-AVG15-L6	¢4mm COB	15°	φ34.8×12.6	88%	PC
WT-35@11-AVG24-L6	¢6mm COB	24°		88%	PC
WT-35@11-AVG24S-COBL6	¢6mm COB	24°		88%	PC
WT-35@11-AVG36-L6	¢6mm COB	36°		88%	PC
WT-35@11-AVG55-L6	¢6mm COB	50°		88%	PC

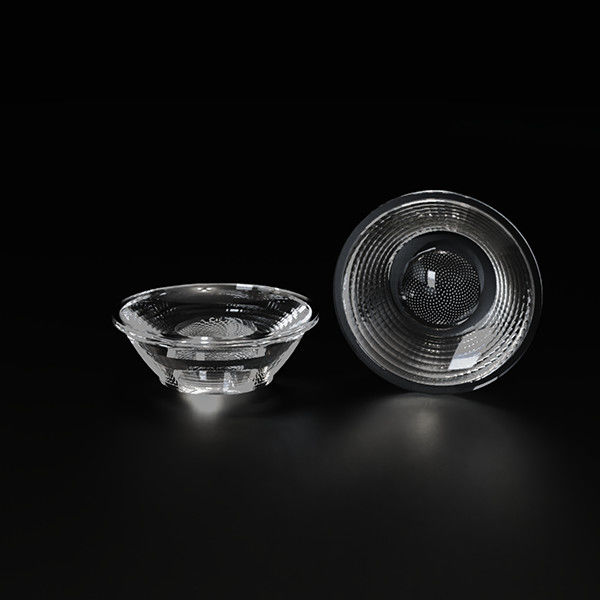

Plastic LED Lighting Lens Match Bridgelux COB Lenses For Downlight 0

Plastic LED Lighting Lens Match Bridgelux COB Lenses For Downlight 1

FAQ
1) Can l have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) When can l get the quotation?
A: We usually give you an offer within 12 hours after we getyour inquiry,. But if you want to get the offer ASAP,please call us or emal us that we can
3) What is the lead time?
A:Sample needs about 3-5 days prepared, mass production time needs 1-2 weeks normally.
4) What are your main products?
A: Our main products are indoor lenses.
