Home > products > COB LED Lens > High Efficiency 60 Degree Led Lens Diameter 50mm TIR Optic Lens

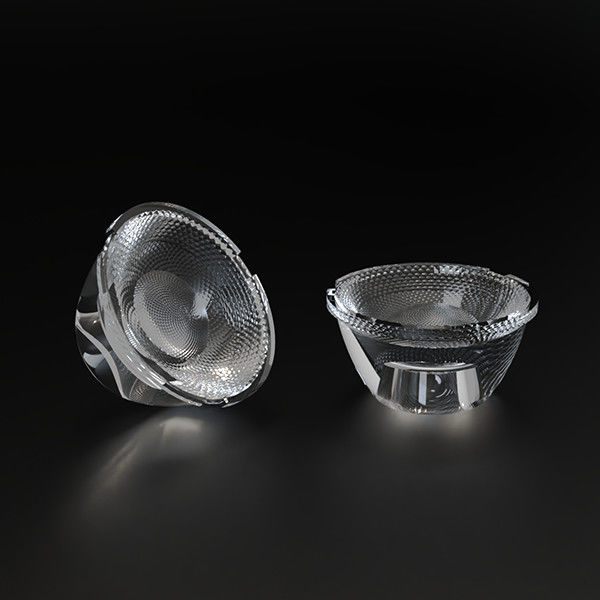

High Efficiency 60 Degree Led Lens Diameter 50mm TIR Optic Lens

Name: High Efficiency 60 Degree Led Lens Diameter 50mm TIR Optic Lens
Brand: Shenzhen wisertop optics Co., Ltd
SKU: WT-50@24-60COBL9-C3
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Wisertop

Certification: Rohs

Model Number: WT-50@24-60COBL9-C3

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Shenzhen Wisertop Technology Co.,Ltd

Packaging Details: Master carton

Delivery Time: 1-2 weeks

Supply Ability: 100,000 day

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                50mm TIR Optic Lens, High Efficiency  60 Degree Led Lens, 60 Degree TIR Optic Lens


Material:	PC	Lens Type:	TIR Lens
Efficiency:	88%	Certificates:	Rohs
Working Temperature:	-40°C~+90°C	Light Source:	Brand COB Leds As Cree Osram Lumileds Bridgelux...

Material:	PC
Lens Type:	TIR Lens
Efficiency:	88%
Certificates:	Rohs
Working Temperature:	-40°C~+90°C
Light Source:	Brand COB Leds As Cree Osram Lumileds Bridgelux...

Product Description

Diameter 50mm upgrade hotel cut-off Lens PC material VA 60° anti-glare COB Lens

Application: Spot light, Down light, Tracking light, Recessed lamp, Ceilling light

Lens material: PC

Lens features:

● Clear visual viewing angle at different angles.

● Suitable for deep anti-glare, high requirement of light shap.

● Highly uniform color consistance and light intensity.

● Natural faded light, Full intergration light into natural .

● Extremely soft light spot.

Fit COB light source: Cree, Lumileds, Bridgelux, Citizen.....

Specifications
Part no	Light-emitting surface	FWHM	Size (mm)	Typ.eff	Material
WT-50@24-15COBL9-C3	¢9mm COB	15°	φ49.8×23.85	88%	PC
WT-50@24-24COBL9-C3	¢9mm COB	24°		88%	PC
WT-50@24-36COBL9-C3	¢9mm COB	36°		88%	PC
WT-50@24-60COBL9-C3	¢9mm COB	50°		88%	PC

FAQ
1) Can l have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) When can l get the quotation?
A: We usually give you an offer within 12 hours after we getyour inquiry,. But if you want to get the offer ASAP,please call us or emal us that we can
3) What is the lead time?
A:Sample needs about 3-5 days prepared, mass production time needs 1-2 weeks normally.
4) What are your main products?
A: Our main products are indoor lenses.
