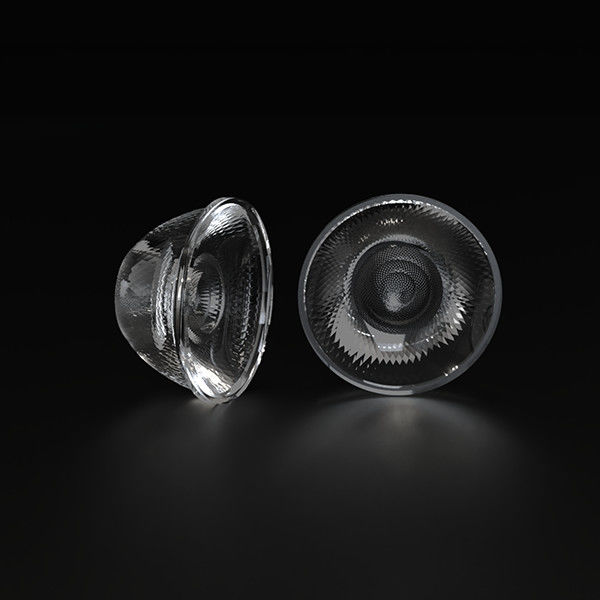

Low UGR Led Optics Lenses Diameter 45mm For Restaurant Tracking Light

Name: Low UGR Led Optics Lenses Diameter 45mm For Restaurant Tracking Light
Brand: Shenzhen wisertop optics Co., Ltd
SKU: WT-45@22-36COBL9-F1
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Wisertop

Certification: Rohs

Model Number: WT-45@22-36COBL9-F1

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Shenzhen Wisertop Technology Co.,Ltd

Packaging Details: Master carton

Delivery Time: 1-2 weeks

Supply Ability: 100,000 day

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                led optics lenses 45mm, Low UGR Led Optics Lenses, Low UGR led light lens


Material:	PC	Lens Type:	TIR Lens
Efficiency:	88%	Certificates:	Rohs
Working Temperature:	-40°C~+90°C	Light Source:	Brand COB Leds As Cree Osram Lumileds Bridgelux...

Material:	PC
Lens Type:	TIR Lens
Efficiency:	88%
Certificates:	Rohs
Working Temperature:	-40°C~+90°C
Light Source:	Brand COB Leds As Cree Osram Lumileds Bridgelux...

Product Description

High efficiency low UGR Lens PC material diameter 45mm restaurant tracking light wide beam angle 36°

Application: Spot light, Down light, Tracking light, Recessed lamp, Ceilling light

Lens material: PC

Lens features:

●high K value

● Accurateviewing angle, Illuminated object is clear and recognizable.

●High light transmittance.

● Maintain high color consistance.

● The main light halo fades naturally.

● Rare glare and good shape light spot

Fit COB light source: Cree, Lumileds, Bridgelux, Citizen.....

Specifications
Part no	Light-emitting surface	FWHM	Size (mm)	Typ.eff	Material
WT-45@22-15COBL9-F1	¢6mm COB	15°	φ44.8×19.05	0.88	PC
WT-45@22-24COBL9-F1	¢9mm COB	24°		0.88	PC
WT-45@22-36COBL9-F1	¢9mm COB	36°		0.88	PC
WT-45@22-50COBL9-F1	¢9mm COB	60°		0.88	PC

Low UGR Led Optics Lenses Diameter 45mm For Restaurant Tracking Light 0

Low UGR Led Optics Lenses Diameter 45mm For Restaurant Tracking Light 1

FAQ
1) Can l have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) When can l get the quotation?
A: We usually give you an offer within 12 hours after we getyour inquiry,. But if you want to get the offer ASAP,please call us or emal us that we can
3) What is the lead time?
A:Sample needs about 3-5 days prepared, mass production time needs 1-2 weeks normally.
4) What are your main products?
A: Our main products are indoor lenses.
