Diameter 23mm Led Optical Lens 24 Degree Linear Spot Led Lamp Lens

Name: Diameter 23mm Led Optical Lens 24 Degree Linear Spot Led Lamp Lens
Brand: Shenzhen wisertop optics Co., Ltd
SKU: WT-23@13-24A-XP3-S1 (PMMA)
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Wisertop

Certification: Rohs

Model Number: WT-23@13-24A-XP3-S1 (PMMA)

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Shenzhen Wisertop Technology Co.,Ltd

Packaging Details: Master carton

Delivery Time: 1-2 weeks

Supply Ability: 100,000 day

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Led Optical Lens 24 Degree, Linear Spot Led Lamp Lens, 23mm Led Optical Lens


Light Source:	Osram 3535	Material:	PMMA
Working Temperature:	-40°C~+70°C	Certificates:	Rohs
Lens Type:	TIR Les	Efficiency:	92%

Light Source:	Osram 3535
Material:	PMMA
Working Temperature:	-40°C~+70°C
Certificates:	Rohs
Lens Type:	TIR Les
Efficiency:	92%

Product Description

Diameter 23mm Linear spot Lens PMMA material Viewing angle 24° for Linear spot lamp

Application: Linear light, Celling light, Recessed light

Lens material: PMMA material

Features:

● High directionality, accurate light control route

● It can be applied to the shading angle of larger lamps, which can ensure high light outlet efficiency under the condition of ultra-small outlet.

● Greater shade angles can bring better anti-glare lighting effects

● Light distribution type of clean, uniform and complete faded spots

Fit SMD light source: XPE/SST10/¢3mm COB

Specifications
Part no	Light-emitting surface	FWHM	Size (mm)	Typ.eff	Material
WT-23@13-24A-XP3-S1	XPE/SST10/¢3mm COB	24°	φ23.2×12.5	0.92	PMMA
WT-23@13-36A-XP3-S1	XPE/SST10/¢3mm COB	36°	φ23.2×12.5	0.92	PMMA

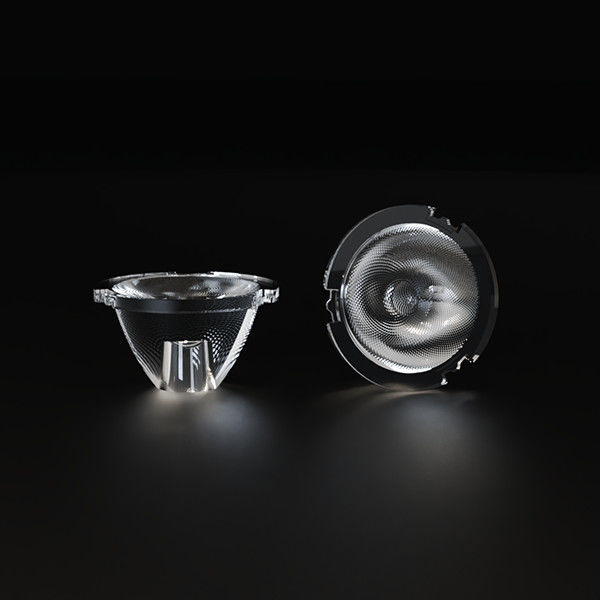

Diameter 23mm Led Optical Lens 24 Degree Linear Spot Led Lamp Lens 0

Diameter 23mm Led Optical Lens 24 Degree Linear Spot Led Lamp Lens 1

FAQ
1) Can l have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) When can l get the quotation?
A: We usually give you an offer within 12 hours after we getyour inquiry,. But if you want to get the offer ASAP,please call us or emal us that we can
3) What is the lead time?
A:Sample needs about 3-5 days prepared, mass production time needs 1-2 weeks normally.
4) What are your main products?
A: Our main products are indoor lenses.
