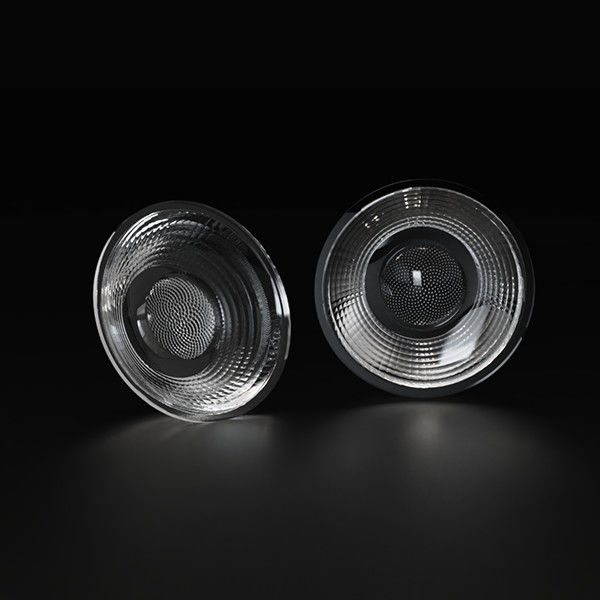

Diameter 55mm Plastic Wide Angle Led Lens 60 Degree Multipurpose

Name: Diameter 55mm Plastic Wide Angle Led Lens 60 Degree Multipurpose
Brand: Shenzhen wisertop optics Co., Ltd
SKU: WT-55@19-AVG60S-COBL11
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Wisertop

Certification: Rohs

Model Number: WT-55@19-AVG60S-COBL11

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Shenzhen Wisertop Technology Co.,Ltd

Packaging Details: Master carton

Delivery Time: 1-2 weeks

Supply Ability: 100,000 day

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Wide Angle Led Lens 60 Degree, 55mm Wide Angle Led Lens, Plastic Led Lens Multipurpose


Light Source:	SMD Led Module	Material:	PC
Working Temperature:	-40°C~+90°C	Certificates:	Rohs
Lens Type:	TIR Les	Efficiency:	88%

Light Source:	SMD Led Module
Material:	PC
Working Temperature:	-40°C~+90°C
Certificates:	Rohs
Lens Type:	TIR Les
Efficiency:	88%

Product Description

SMD LED Lens wide beam angle 60° hotel down light diameter 55mm

Application: Spot light, Down light, Tracking light, Recessed lamp, Ceilling light

Lens material: PC material

Features:

● Low glare

● Natural light cutting, merging into nature

● Wide viewing angle distribution, full and uniform

● Clean, integrated and uniformly distributed deep anti-glare light distribution type

Fit COB light source: Cree, Luminus, Bridgelux, Citizen.....

Specifications
Part no	Light-emitting surface	FWHM	Size (mm)	Typ.eff	Material
WT-55@19-AVG24-L9	¢9mm COB	24°	φ54.8×19.5	88%	PC
WT-55@19-AVG36-L9	¢9mm COB	36°		88%	PC
WT-55@19-AVG55-L9	¢9mm COB	50°		88%	PC
WT-55@19-AVG60-L11	¢9mm COB	60°		88%	PC
WT-55@19-AVG60S-COBL11	¢9mm COB	60°		88%	PC

Diameter 55mm Plastic Wide Angle Led Lens 60 Degree Multipurpose 0

Diameter 55mm Plastic Wide Angle Led Lens 60 Degree Multipurpose 1

FAQ
1) Can l have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) When can l get the quotation?
A: We usually give you an offer within 12 hours after we getyour inquiry,. But if you want to get the offer ASAP,please call us or emal us that we can
3) What is the lead time?
A:Sample needs about 3-5 days prepared, mass production time needs 1-2 weeks normally.
4) What are your main products?
A: Our main products are indoor lenses.
