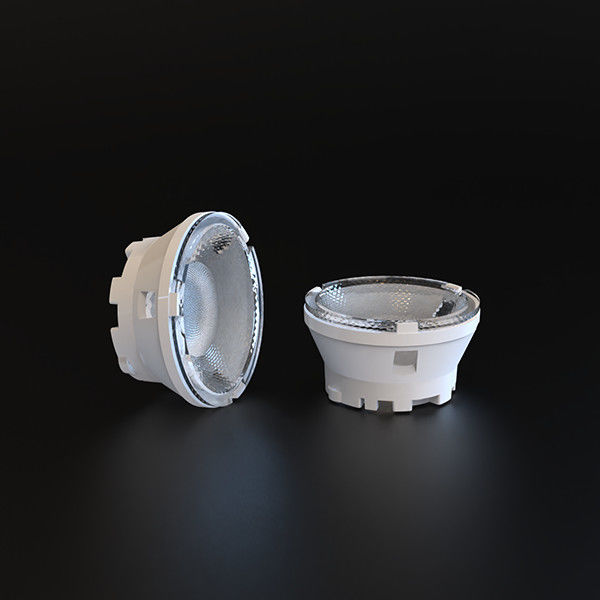

High Performance Led Lighting Lens For Ceilling Light Diameter 29mm

Name: High Performance Led Lighting Lens For Ceilling Light Diameter 29mm
Brand: Shenzhen wisertop optics Co., Ltd
SKU: WT-29@14-M50COBL6-C2 (PC)
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Wisertop

Certification: Rohs

Model Number: WT-29@14-M50COBL6-C2 (PC)

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Shenzhen Wisertop Technology Co.,Ltd

Packaging Details: Master carton

Delivery Time: 1-2 weeks

Supply Ability: 100,000 day

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                diameter 29mm Led Lighting Lens, Ceilling Led Lighting Lens, Diameter 29mm led optics lenses


Material:	PMMA	Lens Type:	TIR Lens
Efficiency:	88%	Certificates:	Rohs
Working Temperature:	-40°C~+90°C	Light Source:	Brand COB Leds As Cree Osram Lumileds Bridgelux...

Material:	PMMA
Lens Type:	TIR Lens
Efficiency:	88%
Certificates:	Rohs
Working Temperature:	-40°C~+90°C
Light Source:	Brand COB Leds As Cree Osram Lumileds Bridgelux...

Product Description

RGBCW color mixing Lens PC material smart control light VA 50° ceilling light diameter 29mm

Application: Spot light, Down light, Tracking light, Recessed lamp, Ceilling light

Lens material: PMMA all available

Lens features:

● It has excellent color mixing characteristics and is compatible with a variety of two-color chip

arrangements and some multi-color arrangement light sources.

● Lamp color drift is small after lens; Single color light source color drift is no more than 0.5SDCM after

lens, for example, light source fill in 2 SDCM, after lens no more than 2.5SDCM.

● The light angles at different view are clearly distinguishable.

● Soft and comfortable auxiliary lighting characteristics; no light exposure in the center of the spot, no

stray light after light be cut off, clean and comfortable.

● The interception of light is natural, lamp fit space better

Fit COB light source: Cree, Lumileds, Bridgelux, Citizen.....

Specifications
Part no	Light-emitting surface	FWHM	Size (mm)	Typ.eff	Material
WT-29@14-M15ECOBL6-C2	¢3/¢4mm COB	15°	φ28.8×14.5	93%	PMMA
WT-29@14-M15ECOBL6-C2(PC)	¢3/¢4mm COB	15°		88%	PC
WT-29@14-M24JCOBL6-C2	¢4mm COB	36°		88%	PMMA
WT-29@14-M24JCOBL6-C2(PC)	¢4mm COB	24°		93%	PC
WT-29@14-M36COBL6-C2	¢4mm COB	24°		88%	PMMA
WT-29@14-M36COBL6-C2(PC)	¢4mm COB	36°		93%	PC
WT-29@14-M50COBL6-C2	¢4mm COB	36°		88%	PMMA
WT-29@14-M50COBL6-C3(PC)	¢4mm COB	50°		93%	PC

High Performance Led Lighting Lens For Ceilling Light Diameter 29mm 0

High Performance Led Lighting Lens For Ceilling Light Diameter 29mm 1

FAQ
1) Can l have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) When can l get the quotation?
A: We usually give you an offer within 12 hours after we getyour inquiry,. But if you want to get the offer ASAP,please call us or emal us that we can
3) What is the lead time?
A:Sample needs about 3-5 days prepared, mass production time needs 1-2 weeks normally.
4) What are your main products?
A: Our main products are indoor lenses.
