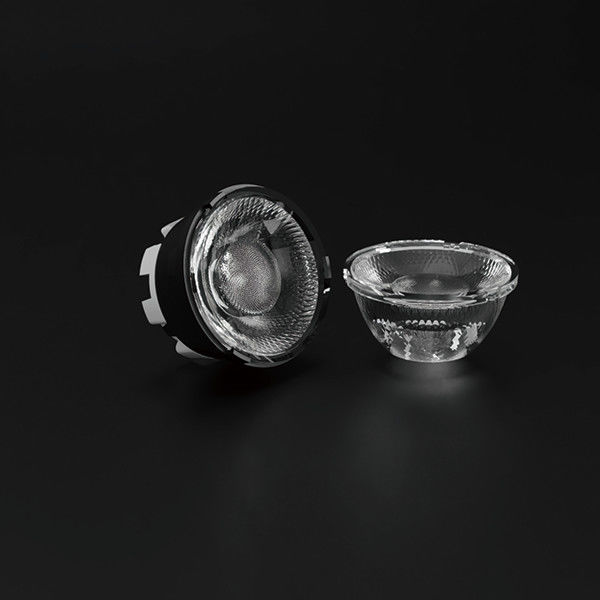

Anti Glare 36degree COB Optical Led Lens PMMA Material For Down Light

Name: Anti Glare 36degree COB Optical Led Lens PMMA Material For Down Light
Brand: Shenzhen wisertop optics Co., Ltd
SKU: WT-75@36-36COBL14-Y1
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Wisertop

Certification: Rohs

Model Number: WT-75@36-36COBL14-Y1

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: Shenzhen Wisertop Technology Co.,Ltd

Packaging Details: Master carton

Delivery Time: 1-2 weeks

Supply Ability: 100,000 day

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                36degree  optical led lens, Anti Glare optical led lens, Anti Glare PMMA TIR Lens


Material:	PMMA	Lens Type:	TIR Lens
Efficiency:	93%	Certificates:	Rohs
Working Temperature:	-40°C~+70°C	Light Source:	Brand COB Leds As Cree Osram Lumileds Bridgelux...

Material:	PMMA
Lens Type:	TIR Lens
Efficiency:	93%
Certificates:	Rohs
Working Temperature:	-40°C~+70°C
Light Source:	Brand COB Leds As Cree Osram Lumileds Bridgelux...

Product Description

Anti glare viewing angle 36° COB Lens PMMA material for downlight high lighting efficiencyDiameter 75mm

Application: Spot light, Down light, Tracking light, Recessed lamp, Ceilling light

Lens material: PMMA all available

Lens features:

●high K value

● Accurateviewing angle, Illuminated object is clear and recognizable.

●High light transmittance.

● Maintain high color resistanc.

● The main light halo fades naturally.

●Low glare and good shape light area.

Fit COB light source: Cree, Lumileds, Bridgelux, Citizen.....

Specifications
Part no	Light-emitting surface	FWHM	Size (mm)	Typ.eff	Material
WT-75@36-15COBL14-Y1	¢14mm COB	15°	φ74.8×35.8	93%	PMMA
WT-75@36-24COBL14-Y1	¢14mm COB	24°		93%	PMMA
WT-75@36-36COBL14-Y1	¢144mm COB	36°		93%	PMMA
WT-75@36-50COBL14-Y1	¢14mm COB	50°		93%	PMMA

Anti Glare 36degree COB Optical Led Lens PMMA Material For Down Light 0

Anti Glare 36degree COB Optical Led Lens PMMA Material For Down Light 1

FAQ
1) Can l have a sample order?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
2) When can l get the quotation?
A: We usually give you an offer within 12 hours after we getyour inquiry,. But if you want to get the offer ASAP,please call us or emal us that we can
3) What is the lead time?
A:Sample needs about 3-5 days prepared, mass production time needs 1-2 weeks normally.
4) What are your main products?
A: Our main products are indoor lenses.
